New locking kit for additional screw locking

Additional screw locking: The new locking kit for the Easy‐Clean version of the ODU AMC® Connector ensures an incredibly secure connection. The locking kit provides screw locking in addition to the original break‐away function. Whenever stronger vibrations occur, this locking system provides additional security during your mission.

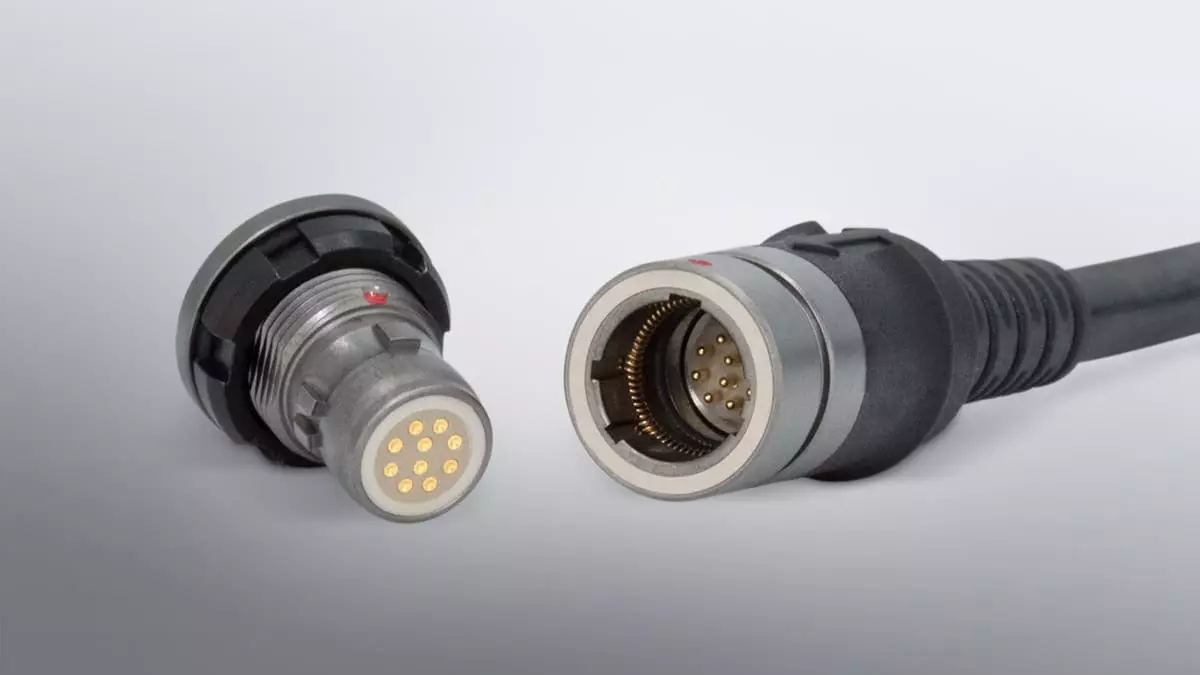

ODU AMC® EASY-CLEAN

Metal connectors with "pogo‐pin" contact system

Extremely robust and sturdy housing
Quick and easy cleaning
Contact inserts with pogo pins
Over 5,000 mating cycles
You need technical details, CAD data, would like to order samples or buy online?

ODU AMC® Easy‐Clean ensures reliable transmissions and can be cleaned quickly even under the most adverse conditions. The practical connector design features an internal „pogo pin“ contact system that makes it easy to remove dirt from the plug, even in demanding military use.

  • Waterproof in accordance with protection class IP6K8 and IP6K9K
  • Operating temperature range from –51 °C to +125 °C
  • 7 – 19 contacts
  • Low space requirements, minimal physical effort required for mating
  • 3 sizes

Compare products

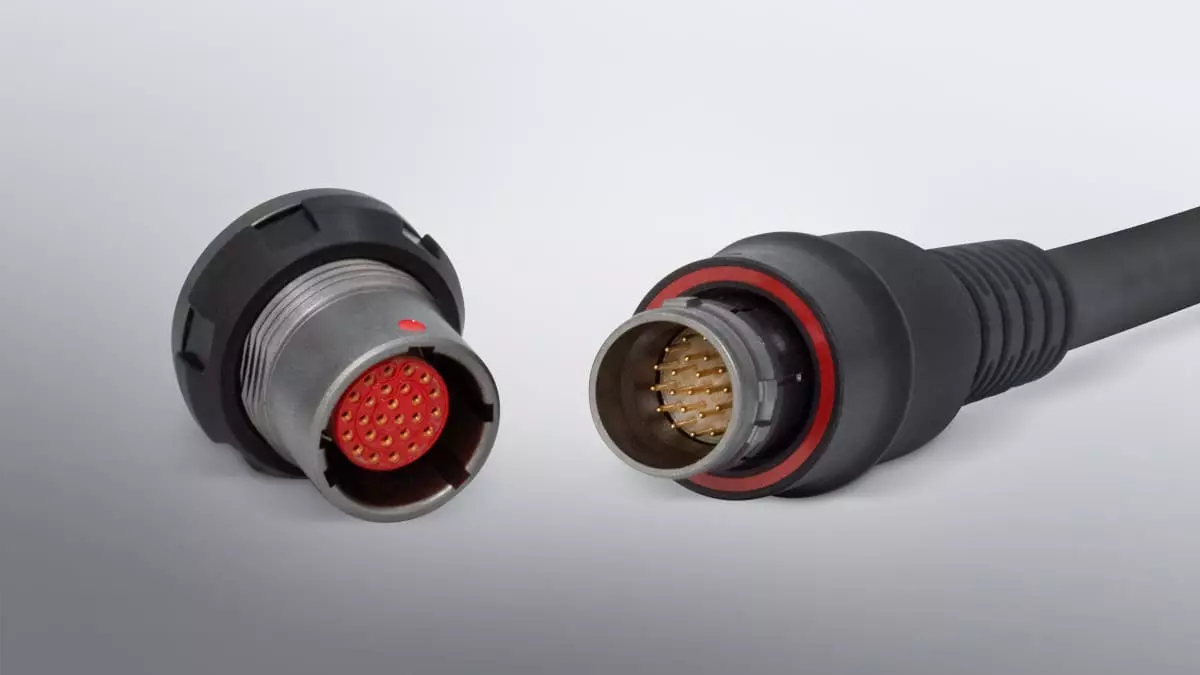

ODU AMC®
ODU AMC®
ODU AMC® Easy-Clean
ODU AMC® Easy-Clean

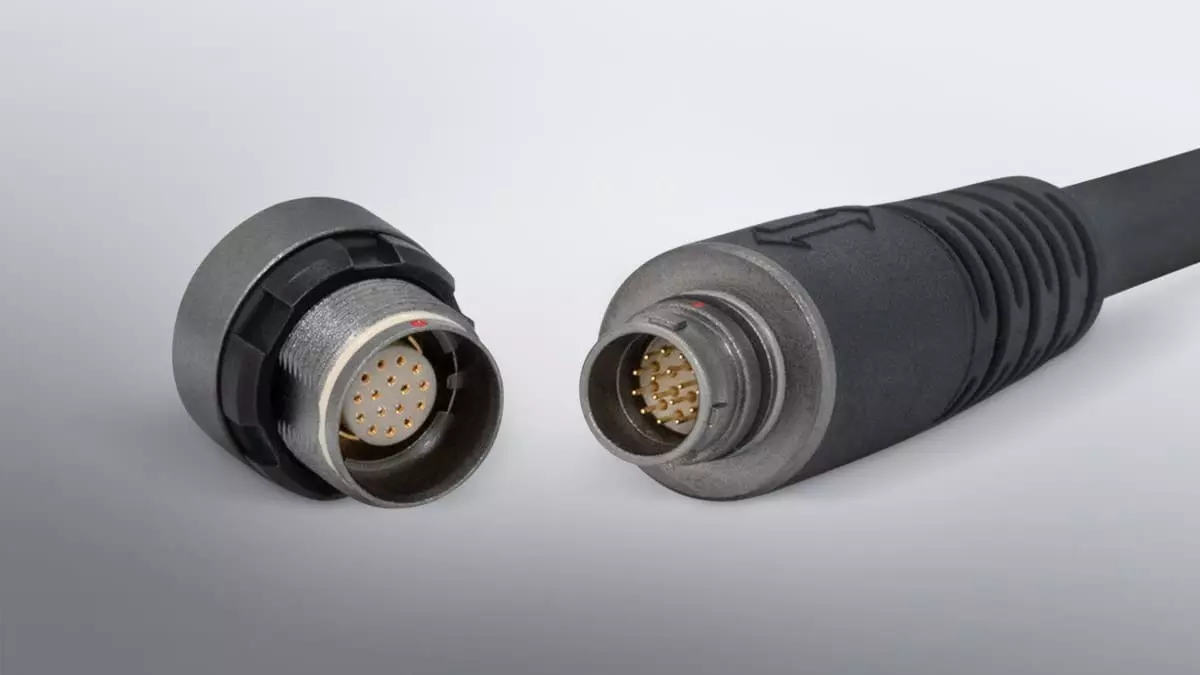

ODU AMC® High-Density
ODU AMC® High-Density

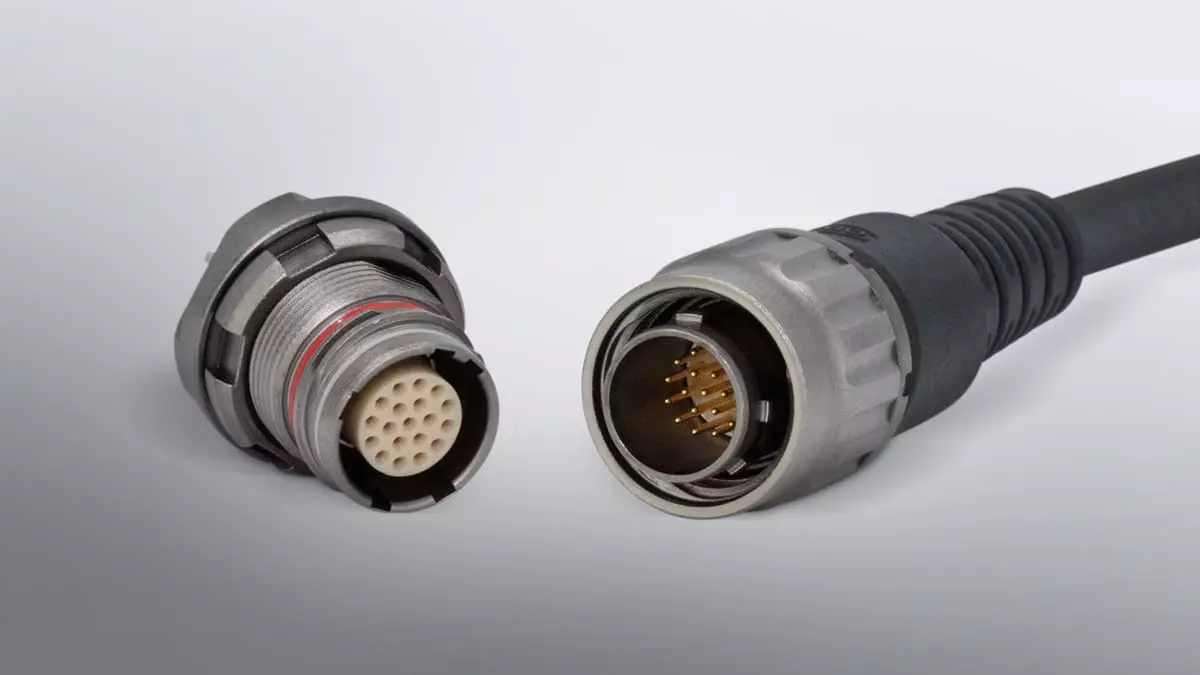

ODU AMC® Threaded
ODU AMC® Threaded
ODU AMC® Series T
ODU AMC® Series T

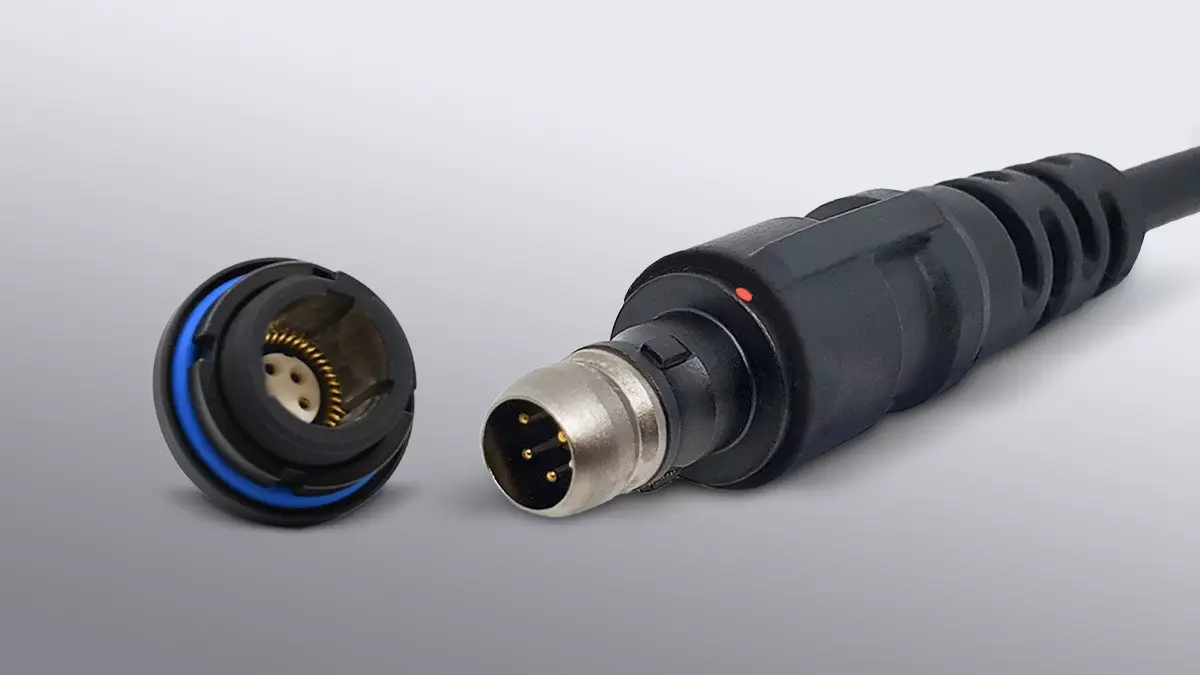

ODU AMC® NP
ODU AMC® NP
IP Class mated Up to IP6K9K Up to IP6K9K Up to IP6K9K Up to IP6K8 Up to IP6K8 IP68
IP Class unmated IP68 IP6K8 IP68 IP68 IP68 IP68 (for overmolded and potted connectors only)
Keying Pin and groove Pin and groove Pin and groove Pin and groove Pin and groove Pin and groove
Mating-cycles > 5,000 > 5,000 > 5,000 > 2,000 > 500 > 2,000
Termination technologies Solder, PCB Solder, PCB Solder, PCB Solder, PCB Solder, Crimp, PCB Solder, PCB
Shell material Aluminum Aluminum Brass Aluminum Aluminum Aluminum
Plating Ruthenium Ruthenium Ruthenium Tin-Nickel Tin-Nickel RoHS compliant black carbon
Operating temperature range –51 °C to +125 °C –51 °C to +125 °C –51 °C to +125 °C –51 °C to +125 °C –65 °C to +175 °C –18 °C to +71 °C

Expanded Beam Performance

Discover the new diversity now!

ODU AMC® Easy‐Clean Locking Kit for fast retrofitting

A locking kit is now available for the Easy‐Clean version of the ODU AMC® product series. The kit can be retrofitted and provides additional screw locking.
